BiOptic Inc. se dedica a la biotecnología, centrándose en desarrollar analizadores de fragmentos de ADN avanzados. Estos dispositivos tienen la capacidad de analizar y preservar muestras de ADN con alta precisión, garantizando la integridad genética y los perfiles de expresión de las muestras.

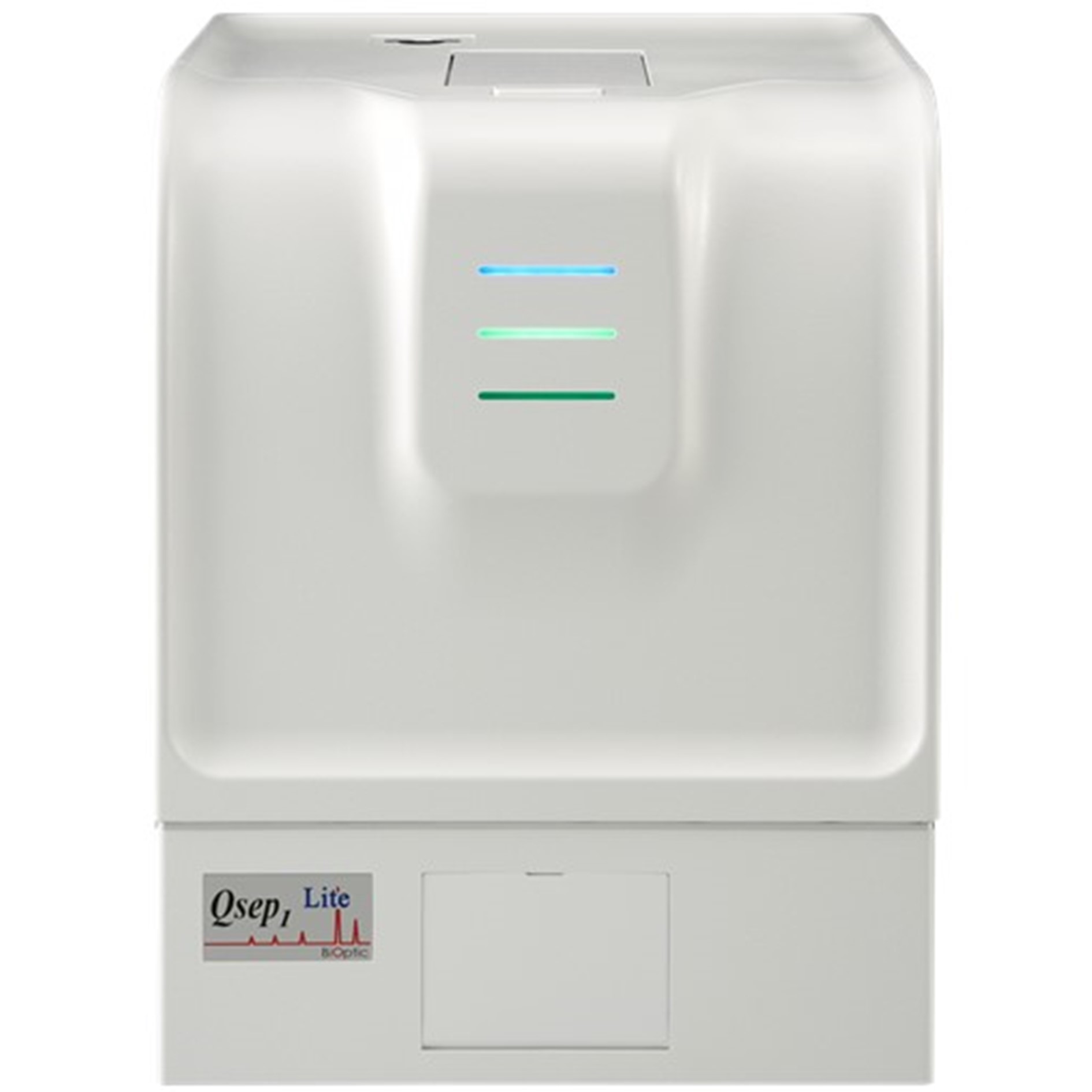

Qsep1-Lite |

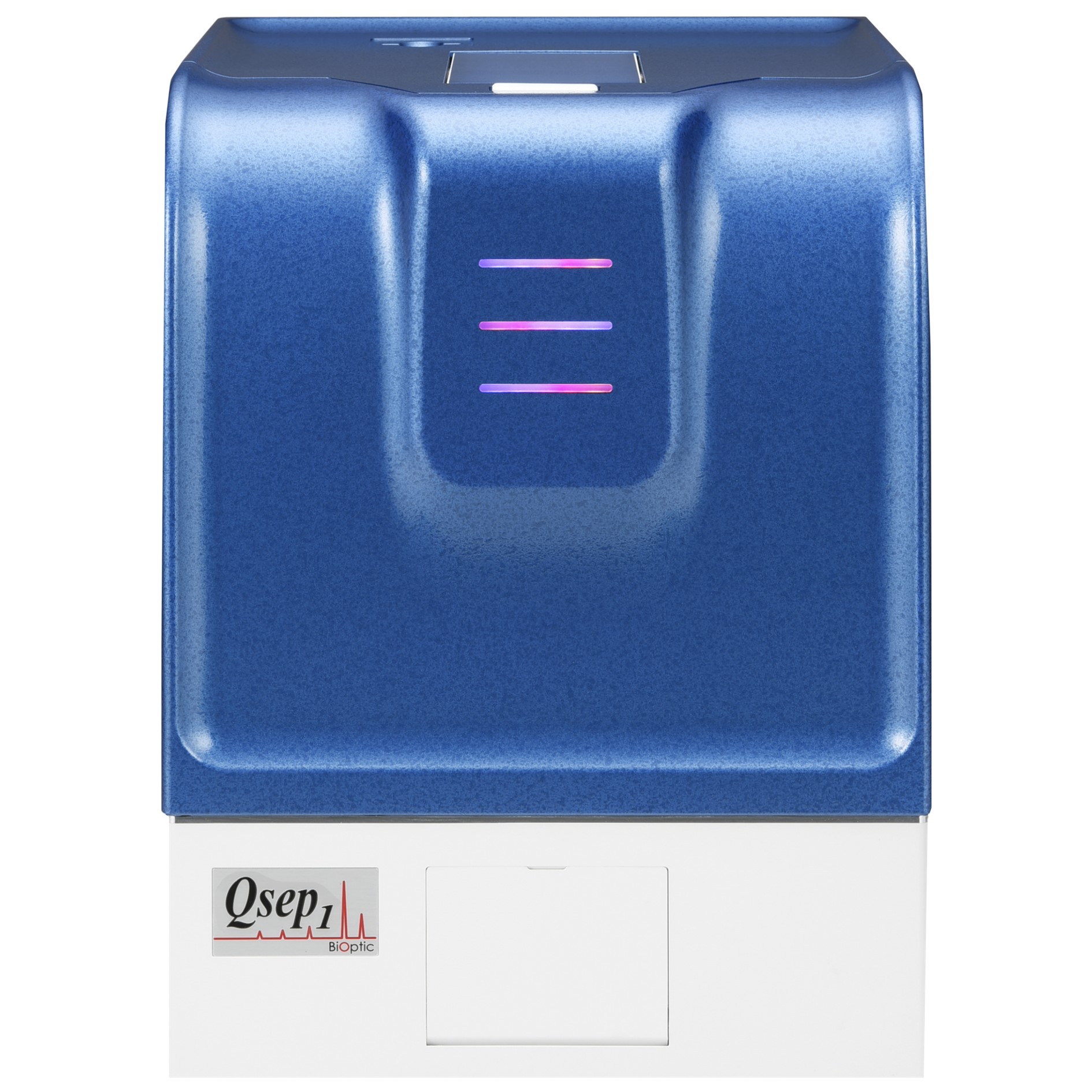

Qsep1 |

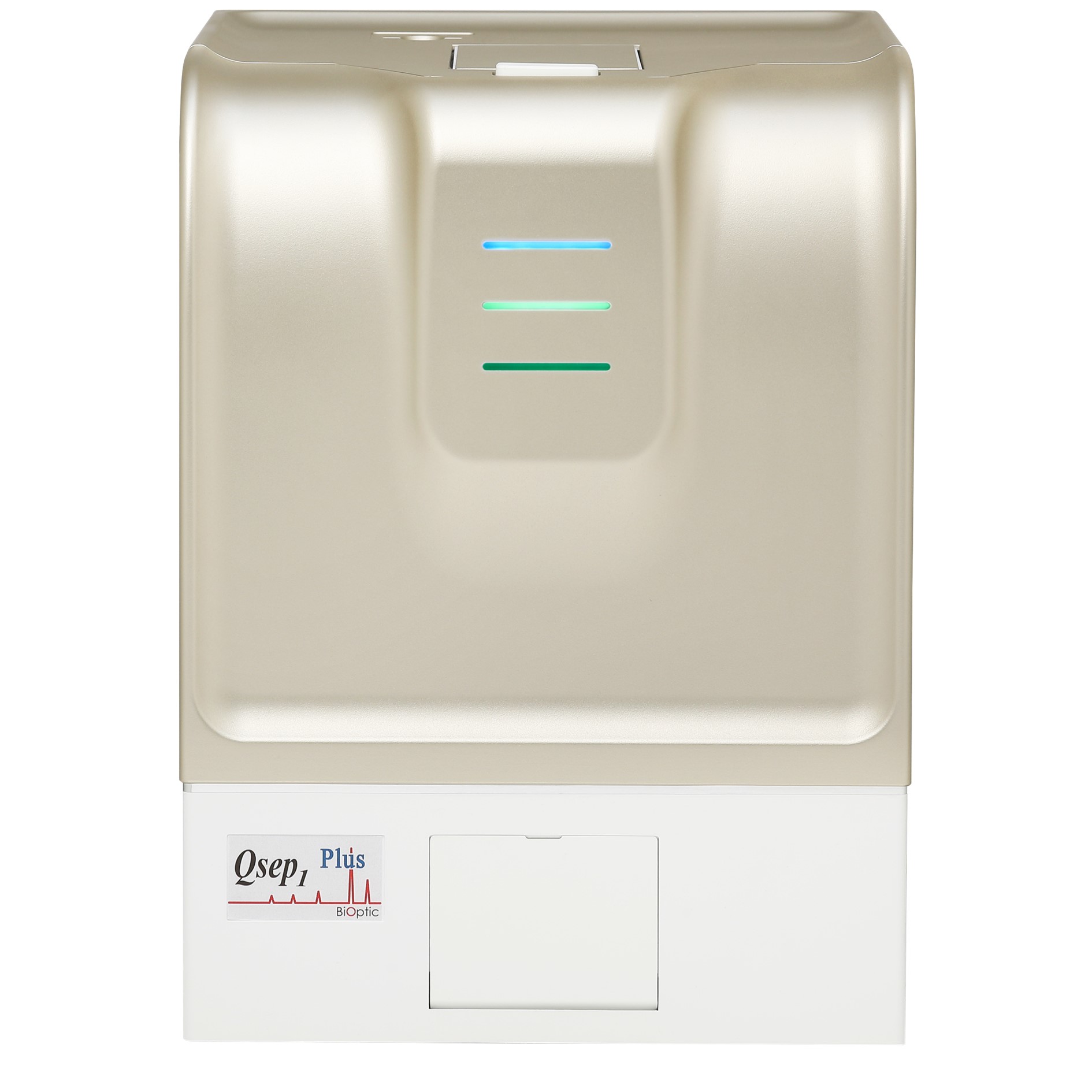

Qsep1-Plus |
Qsep100 |

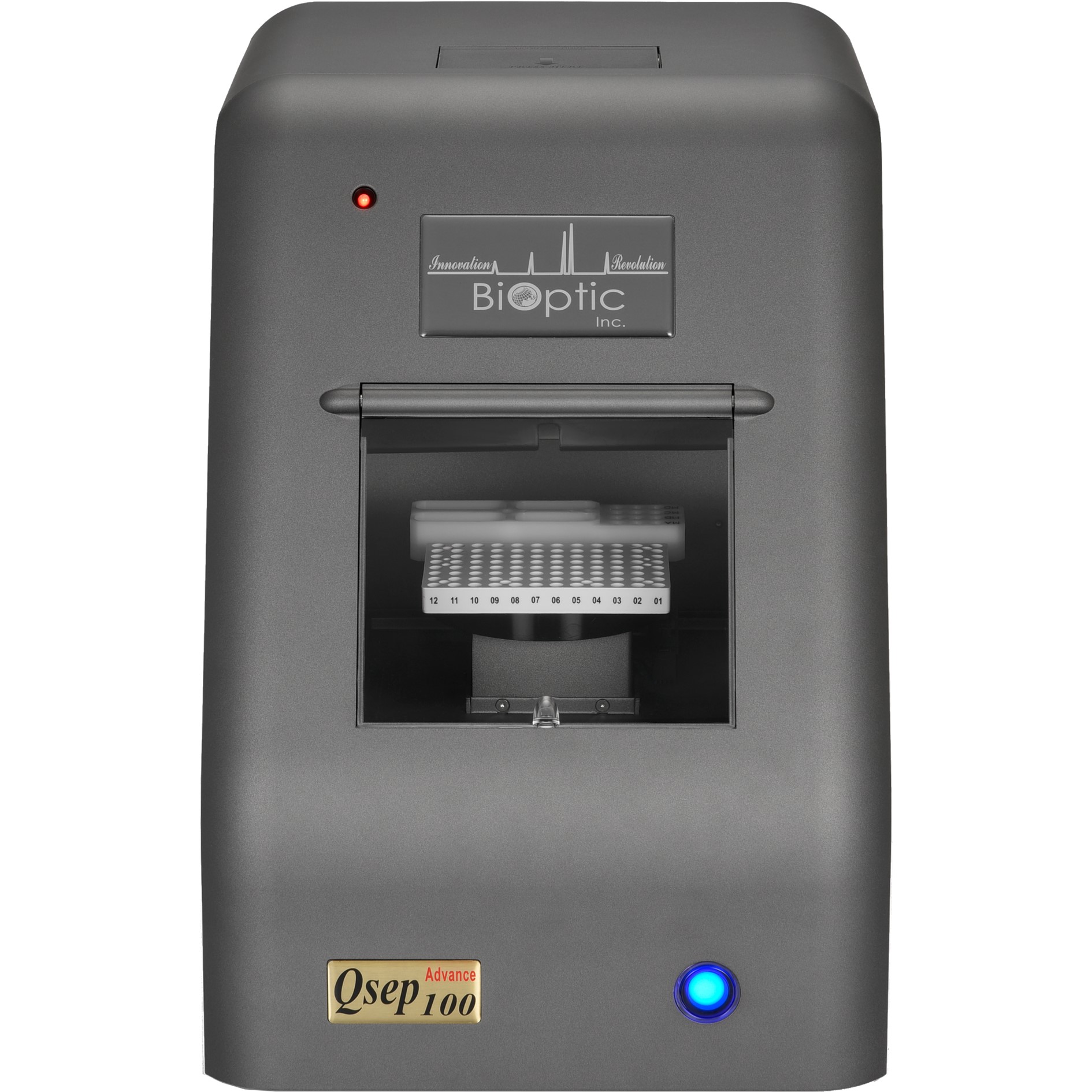

Qsep100 advance |

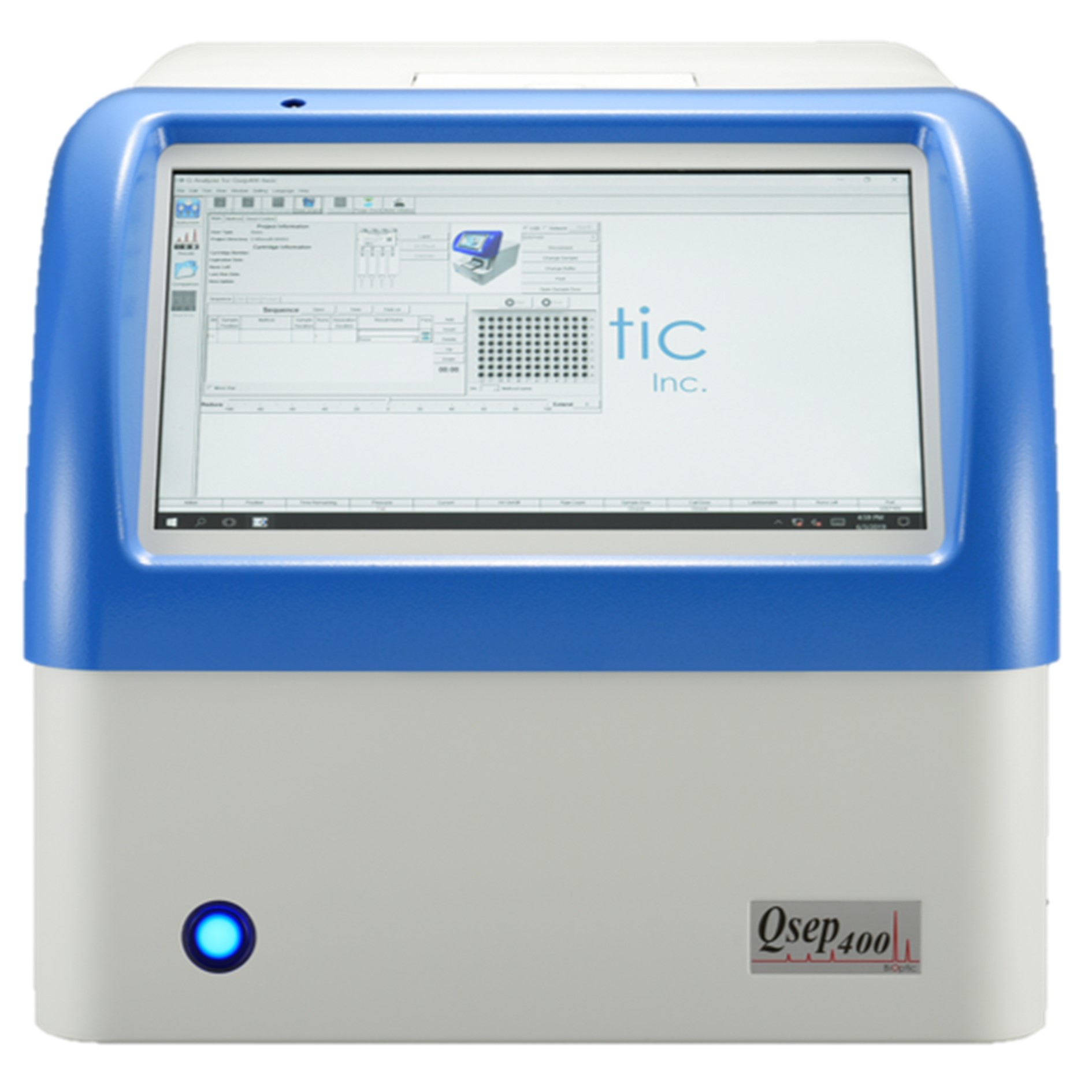

Qsep400 | |
|---|---|---|---|---|---|---|
| Separation Voltage | 1~8kV | 1~8kV | 1~8kV | 1~15kV | 1~15kV | 1~15kV |
| Connection | Ethernet Cable | Wifi/ Ethernet Cable | Wifi/ Ethernet Cable | USB | USB | USB |
| Power Source | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V |
| Maximum Power | 30W | 30W | 30W | 30W | 30W | 60W |
| System Weight | 5.5kgs | 5.5kgs | 5.5kgs | 15kgs | 15kgs | 26kgs |
| Dimension | 24x 21x 30cm | 24x 21x 30cm | 24x 21x 30cm | 38x 30x 40cm | 38x 30x 40cm | 54x 40x 36cm |
| System Type | 1 Channel Portable System | 1 Channel Portable System | 1 Channel Portable System | 1 Channel Standard System | 1 Channel Standard System | 4 Channel System |
| Automated Sampling | 1~8 samples | 1~8 samples | 1~16 samples | 1~96 samples | 1~96 samples | 4~96 samples |
| Minimum Sample Volume | 2μl sample (0.1mL Tube: C104252) | 1~2μl (Micro-Vial) 10μl (0.1 mL Tube) 20μl (0.2 mL Tube) | 1~2μl (Micro-Vial) 10μl (0.1 mL Tube) 20μl (0.2 mL Tube) | 1~2μl (Micro-Vial) 10μl (0.1 mL Tube) 20μl (0.2 mL Tube) | 1~2μl (Micro-Vial) 10μl (0.1 mL Tube) 20μl (0.2 mL Tube) | 1~2μl (Micro-Vial) 10μl (0.1 mL Tube) 20μl (0.2 mL Tube) |
